Operations of the Chateaugay Division of Republic
Steel, at Lyon Mountain
by William J. Linney

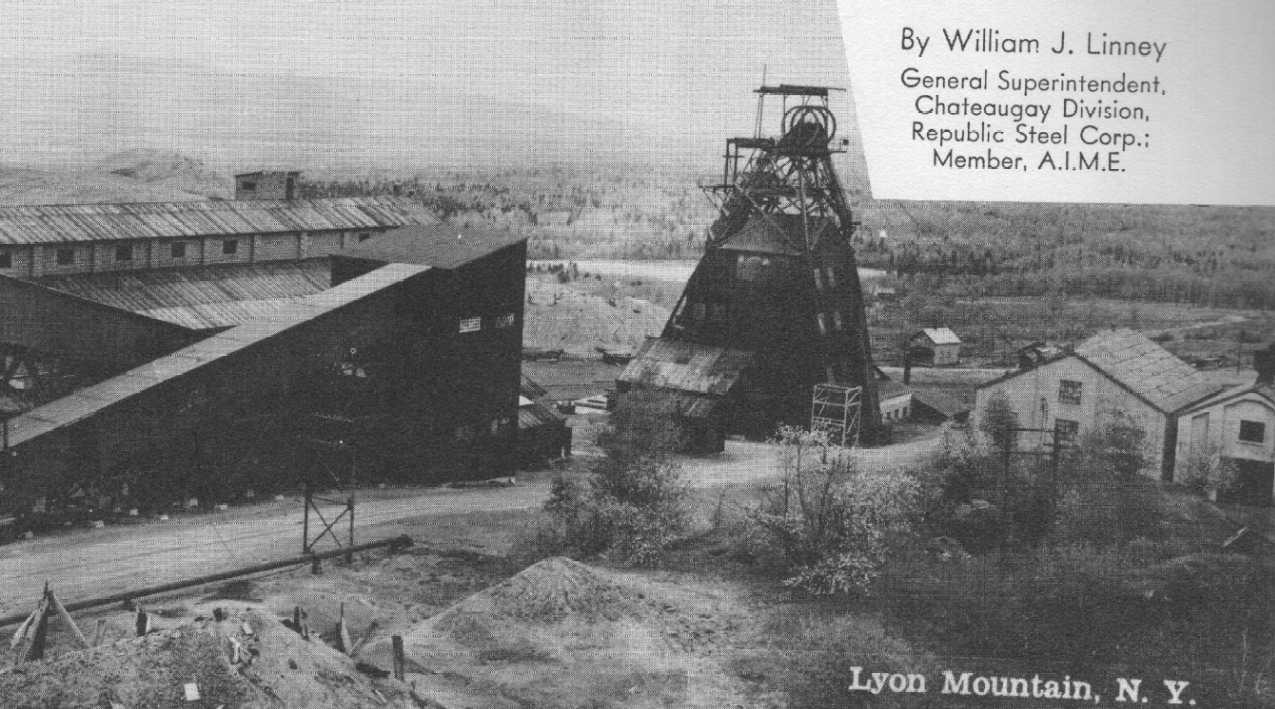

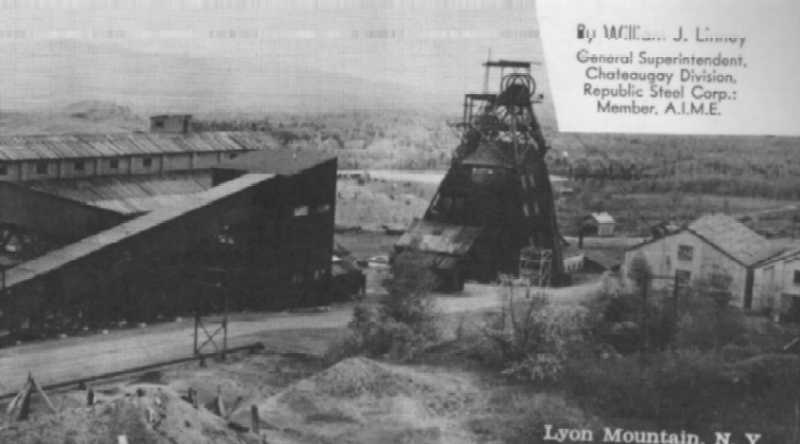

Headframe on main hoisting shaft.
Magnetite ore from Lyon Mountain,
so - called "Low Phos Chateaugay," has long been known to the iron
and steel industry for its almost complete absence of impurities. These
magnetites occur along the northern foothills of the Adirondacks in
several parallel and folded stringers which are continuous for several miles,
striking generally northeast-southwest and dipping usually over 45~ to the
northwest, or roughly toward the St. Lawrence River. Ore of minable thickness
is found in shoots of various sizes as to length and breadth, but of undetermined
and possible great depth.
The present hoisting shaft at Lyon Mountain is
in ihe largest of the known shoots; one that is several thousand feet long
at the surface and that has an average minable thickness of about 15 ft. of
25 per cent iron. Mineralized zones often penetrate further into the hanging
or footwall, but these are not of economic trade. This ore shoot is folded
and twisted into intricate patterns and is also cut by pegmatites, asic
dikes, and faults.
These veins or stringers of magnejites probably
originated during the Adirondack mountain~forming period of the Pre-Cambrian,
when the Grenville series of sediments was intruded by the syenites, anorthosites,
granites, etc., to form the Adirondacks. Some of the Grenville rocks were
not assimilated by the intruding magma but were probably trapped and metamorphosed
in the mass of sycnite. Dynamic forces of heat and pressure then went
to work to form the "flow" structure, and chemical reactions took place
in which replacement and transfer of minerals occurred, helped along by
hot, gaseous solutions. Some of these reactions were apparently aided by
the type of minerals originally part of tile old Grenville sediment. The
result has been a concentration of magnetite and iron minerals in some of
the gray gneisses. Thus the old Grenville rocks are responsible to a large
extent for another of the many economic minerals already
credited to them in other parts of North America.
Closely related to the magmatic intrusions and
dynamic upheaval was the pegmatitic phase in which the more fluid acid rocks
in turn invaded the Grenville ore series, thereby "cutting off" some of the
ore. Intrusions of basic dikes and faulting were the latest of the forces
which shifted the ore veins to some extent.
Exploration of these deposits is difficult because
of the complicated folding, which often causes a drawing-out or dunning
of the ore in anticlines, and a thickening in synclines or troughs.
Further complications are encountered in (lip-needle work as it is almost
impossible to distinguish between a series of stringers and a minable ore
shoot by use of this instrument. Consequently extensive use of the diamond
core drill is found to be essential to both the exploration and development
of the ore bodies.
Mining Practice
Main entrance to the mine is through an 8 by 24-ft.,
63' incline shaft which is sunk, mostly in the footwall, to a depth of 2350
ft. The vein is tapped from the shaft at intervals varying from 150 to 300
ft.
Levels, or drifts, 8 by 12 ft., are driven east
and west of the shaft on the strike of the vein. The drifts are driven on
a rising grade of 3A of 1 per cent in order to facilitate drainage and favor
transportation, the loaded cars traveling on the downgrade. As the drifts
advance, a permanent 36-in. gauge track is laid with 60-lb. steel rail on
good sound wooden ties spaced 30 in. apart, ballasted with iron ore or rock,
whichever is met in driving the drift.
Wherever the vein is steep enough, which it is
in most places, raises 5 by 8 ft., spaced on 30-ft. centers, are driven up
into the ore above the drift, from which stopes are started for mining the
ore for production. Chutes, usually made of 3-in. hardwood plank and timber
with a 3/5-in. steel-plate liner, using an underhand arc gate and 10 by 30-in.
air lift, are installed in the bottom of the raises through which the ore,
after it has been broken, is loaded into the tram cars.
A variation of this method of installing chutes
is to drive a subdrift approximately 40 ft. above the main drift. From this
subdrift, i'aises are driven on 30-ft. centers. The ore comes down into
the subdrift and is scraped by 50-hp. electric hoists to a main ore pocket.
The advantage of this subdrift is that only one chute need be built. It
is less hazardous when drawing ore from the stopes. At each end of a stope,
a manway raise, 6 by 8 ft., is driven through to the level above for ventilation,
pipe, and ladderways, and to afford entrance to the stope.
Three kinds of stoping methods are used in fliing
the ore. shrinkage, underhand, and scraper.
The shrinkage method is the one, consisting of
drilling up into the ore, blasting it down, and drawing only enough ore out
of the stope each day to leave space for the men to work, completing a daily
cycle. This is continued until the stope is advanced to
within 30 ft. of the l~vel above, during which time about 40 per cent of
the ore broken is drawn out daily. and 60 percent left in. Thus. when the
stope is completed. it is full of broken ore which can he drawn out at will.
The underhand method consists of drilling down
into the ore and blasting it from sublevels which have been driven across
the stope at 50-ft. intervals, connecting both manway raises. As the ore is
broken, it falls by gravity to the loading chutes below, and can ah be drawn
out immediately.
In places where the vein is not steep enough for
the ore to run by gravity the scraper method can be used. At convenient
locations, a small, doubledrum, electrically-driven hoist is installed,
equipped with 5/5-in. steel cables, to which is attached a steel
scraper. After the ore has been drilled and blasted it is scraped along
the floor to small ore pockets, from which it is loaded by gravity into
the tram cars.
Transportation of the ore from the working places
to the main hoisting shaft is accomplished by storage-battery locomotives
hauling steel, side-dump cars of the Granhy type, each having a capacity
of 6 long tons. and equipped with roller bearings. Loading and tramming of
each train is done by two men, averaging 55 long tons per man per day for
the entire mine.
After the ore is trammed to the main hoisting shaft.
it is dumped into the ore pass which is connected to each level. At the bottom
of this ore pass is a large 48 by 36-in. jaw crusher reducing lumps to 8
in. or smaller. The crushed ore is discharged by gravity into the skip loading
bins, loaded into the 8-ton skips, hoisted at the rate of 1800 ft. per mm.,
and dumped automatically into the bins above the secondary crushers in the
headframe at the top of the shaft.
Splendid ventilation is provided in an unusual
and inexpensive way. Openings from the old workings to the surface at the
extreme westerly end of the mine are considerably higher than those on the
easterly end. During the long, cold winter months, tremendous quantities of
ice, hundreds of thousands of tons, accumulate in these workings, which cools
the air sufficiently to cause large volumes to go down into the workings,
forcing the smoke and gases out through the openings to the surface on the
easterly end of the mine. The ice, of course, melts considerably during
the summer months but never entirely, enough fortunately remaining to ensure
ample ventilation of the mine at all times.
The entire mine is arranged so that the water
from all sections drains by gravity to points at, or near, the main hoisting
shaft, from which it is pumped to the surface by electrically-driven pumps.
The quantity is about 700 g.p.m. It is quite pure and contains no acids so
is not destructive to the pumping equipment.
In many places in the mine. especially on the
lower levels, much timbering must be done to support the back, or roof,
of the main drifts, on account of the tendency of the ore and rock to spall
and loosen.
The mine, as now developed and equipped, is capable
of producing 4500 long tons of ore, by drilling eight hours per day, tramming
ore sixteen hours per day, and hoisting twenty hours per day.
Milling and Concentrating
CHATEAUGAY ore, as mined, contains 25 per
cent iron. By milling and magnetic concentration the iron content is brought
up to 68 percent. Pure magoetite contains 72.4 percent iron and 27.6 per
cent oxygen. When the ore comes from the mine it is 8 in. and smaller in
size. The fines, 1/2 in. and smaller, are screened out and conveyed by an
18-in. belt conveyor to the fine silo. The coarse, 4 in. and larger, is crushed
to 3 in. by two 10 by 72-in. jaw crushers in the head house at the top of
the main hoisting shaft. Ore from the crushers, long with the minus 1/2 in.
which by-passes the crushers, is conveyed by a 30-in. belt conveyor to a
crushing plant, where it is passed over a double-deck screen. That passing
a 3-in. screen is conveyed to a fine silo; that passing a 2-in. screen and
retained on a 1/2-in.
